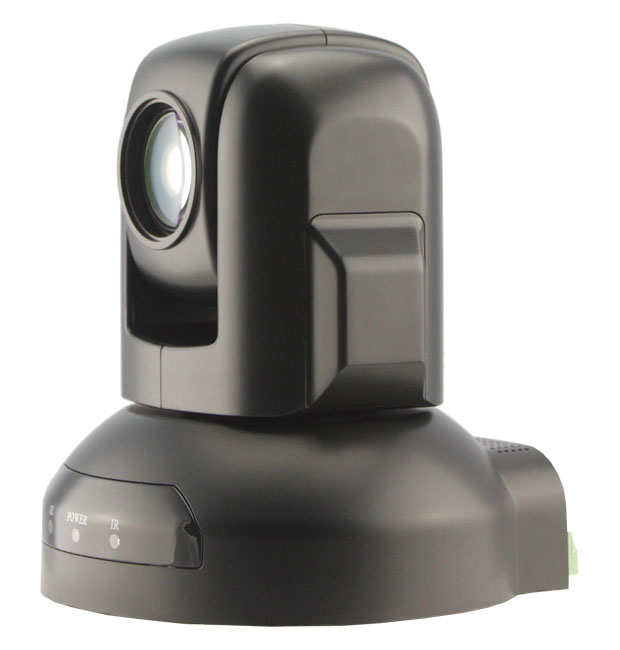

Model No |
HD653L |
|
|
Image Sensor |
Sensor |
|
|
Effect Pixel |
2.1 Megapixel |
|
|
Minimum Illumination |
0.5Lux at F2.0 |
|
|
White Balance |
Auto |
|
|
Gain Control |
Auto |
|
|
S/N Ratio |
>50db |
|
|
Lens |
Lens |
f=5-15mm F=1.6 |
|
Iris |
Auto |
|
|
Zoom |
3x vari-focal lens |
|
|
Hov |
19°-41° |
|
|
Video Output |
USB2.0 |
|
|
Video Format |
1080P30, 720P25 |
|
|

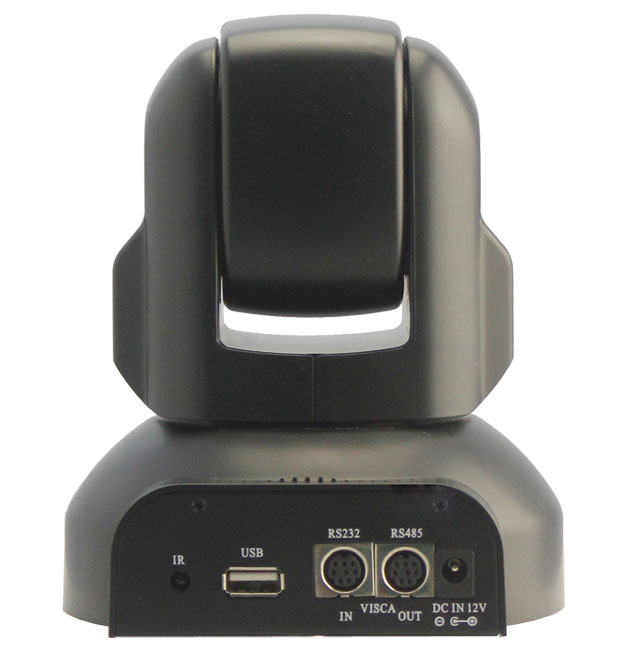

Communication |
USB, RS-232C，RS-485（Bidirectional） |
|
|
PTZ Control Protocol |
VISCA, PELCO-D |
|
|
Baud Rate |
9600/38400bps |
|
|
Patrol Tours |
4 |
|
|
Preset Position |
64 |
|
|
Speed Matching |
Support |
|
|
Image Auto Flip |
Support |
|
|
Pan Speed |
1-280°/S |
|
|
Tilt Speed |
1-100°/S |
|
|
Pan Rotation Angle |
360°Continuously |
|
|
Tilt Rotation Angle |
90°(up), 45°(down) |
|
|
Auto Pan Scan |
Support |
|
|
Boundary Scan |
0-359 degree (Programmable) |
|
|
Remote Control |
IR remote control P/T/Z |
|
|
Power |
DC12V±10%,1.2A |
|
|
Operation Temperature |
0-50℃ |
|
|
Environmental Humidity |
0-95% RH |
|
|
Length×Width×High |
124mm×120mm×145mm |
|
|
Weight |
670 g |
|
