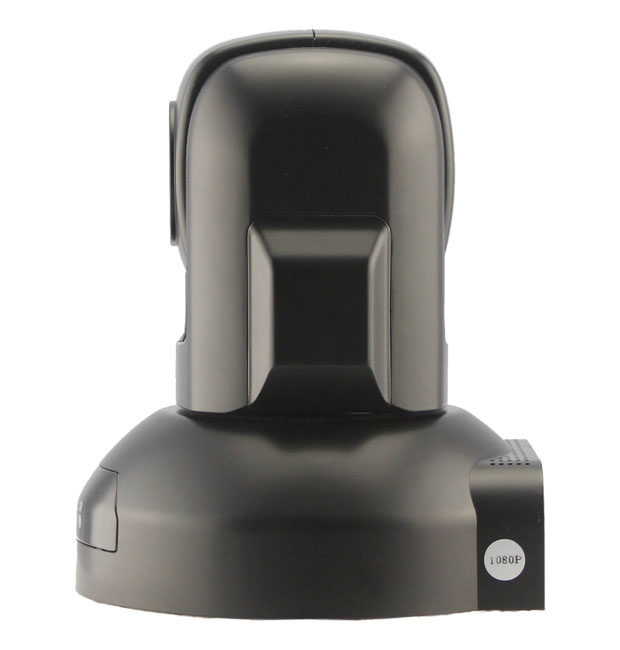

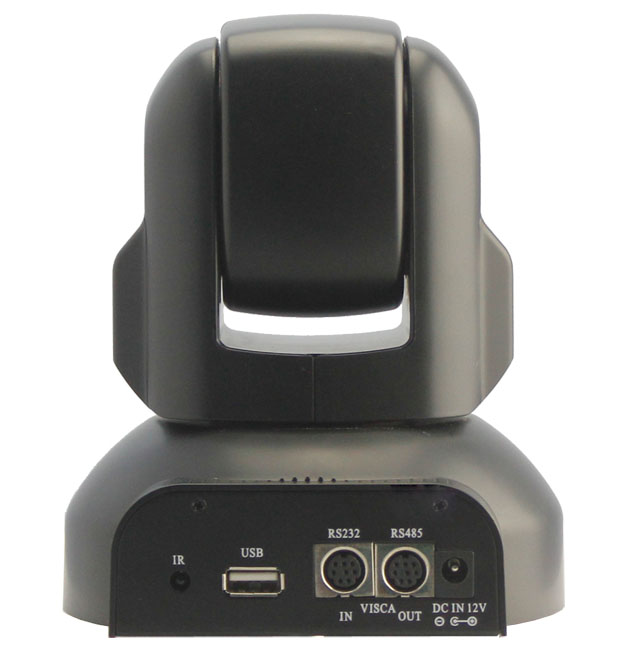

HD653-W USB 2.0 PTZ Camera
HD653-W USB 2.0 PTZ Camera
Liên Hệ



Low Cost High Performance 2.0 Megapixel HD Color Video camera achieved 1080p@30 or 720p@30 high quality images. Equipped with 5-15mm varifocal lens, USB 2.0 ideally for Small or Medium size Web conferencing system, easily connecting to laptop for whom on business trip.

Model

HD653-W


SenSor

Sensor

1/2.7″ HD color CMOS

Signal System

PAL/NTSC

Minimum Scene lllumination

0.5Lux at F2.0

White Balance

AUTO/Manual

Gain Control

AUTO

Back-light compensation

ON/OFF

S/N Ratio

>50 db

Lens

Lens

f=3-10mm F=1.4

Iris

AUTO/Manual

Zoom

3x sync focus

Hov

70 degree

Video Output

USB Interface

Video format

MJPG/1080P29, 720P@30, YUY2/1080P@5,720P@9

Control Decoder

EIA/RS-485, USB

Communication

EIA/RS-232(Bidirectional)

PTZ Control Protocol

VISCA, PELCO-D

Baud Rate

9600/38400bps

Patrol tours

4

Preset

64

Save status after Power off

Support

Speed Matching Function

Support

Image Auto Flip

Support

Pan Speed

0-280 degrees/s

Tilt Speed

0-100 degrees/s

Pan Rotation Angle

360 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359 degree(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V ±10% 1.2A

Operation Temperature

0℃~50℃

Environmental humidity

0-95%RH(non-condensaion)

Length X width X high

124x120x145mm/220x175x220mm(NET/PACKAGE)

Weight

640g/1100g(NET/PACKAGE)

12 Tháng
: Đang Có Hàng

Model

HD653-W


SenSor

Sensor

1/2.7″ HD color CMOS

Signal System

PAL/NTSC

Minimum Scene lllumination

0.5Lux at F2.0

White Balance

AUTO/Manual

Gain Control

AUTO

Back-light compensation

ON/OFF

S/N Ratio

>50 db

Lens

Lens

f=3-10mm F=1.4

Iris

AUTO/Manual

Zoom

3x sync focus

Hov

70 degree

Video Output

USB Interface

Video format

MJPG/1080P29, 720P@30, YUY2/1080P@5,720P@9

Control Decoder

EIA/RS-485, USB

Communication

EIA/RS-232(Bidirectional)

PTZ Control Protocol

VISCA, PELCO-D

Baud Rate

9600/38400bps

Patrol tours

4

Preset

64

Save status after Power off

Support

Speed Matching Function

Support

Image Auto Flip

Support

Pan Speed

0-280 degrees/s

Tilt Speed

0-100 degrees/s

Pan Rotation Angle

360 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359 degree(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V ±10% 1.2A

Operation Temperature

0℃~50℃

Environmental humidity

0-95%RH(non-condensaion)

Length X width X high

124x120x145mm/220x175x220mm(NET/PACKAGE)

Weight

640g/1100g(NET/PACKAGE)
