Matrix Switcher Kramer VS-44HDCP
Matrix Switcher Kramer VS-44HDCP
Liên Hệ

The VS-44HDCP is a high-quality, HDCP compliant 4x4 DVI matrix switcher. It reclocks and equalizes the signals and can route any of the four DVI/HDMI (over DVI-I connectors) inputs to any of the four DVI/HDMI outputs simultaneously.

  •  Max. Data Rate — 6.75Gbps (2.25Gbps per graphic channel).

  •  HDCP Compliant.

  •  HDTV Compatible.

  •  HDMI Support — HDMI support for Deep Color, x.v.Color™, Dolby® TrueHD, Dolby Digital Plus, DTS–HD®, and linear PCM 7.1 surround sound.

  •  Kramer Equalization & re–Klocking™ Technology — Rebuilds the digital signal to travel longer distances.

  •  EDID Capture — Copies and stores the EDID from a display device.

  •  Front Panel Control Lockout.

  •  Output Disconnect — For each output.

  •  Memory Locations — Stores multiple switches as presets to be recalled and executed when needed.

  •  Communication Support — Support for Kramer Protocol 2000 and Protocol 3000.

12 Tháng
: Đang Có Hàng
: Switchers and Matrices

INPUTS

·         4 DVI connectors

OUTPUTS

·         4 DVI connectors

BANDWIDTH

·         Up to 6.75Gbps data rate (2.25Gbps per graphic channel)

COMPLIANCE WITH STANDARDS

·         Supports DVI and HDCP

MAX RESOLUTION

·         Up to UXGA

·         1080p

POWER SOURCE

·         100–240V AC

·         50/60Hz, 20VA

CONTROLS

·         Front panel buttons, infrared remote control transmitter, RS–232, Ethernet

OPERATING TEMPERATURE

·         0° to +40°C (32° to 104°F)

STORAGE TEMPERATURE

·         –40° to +70°C (–40° to 158°F)

HUMIDITY

·         10% to 90%, RHL non–condensing

INCLUDED ACCESSORIES

·         Power cord, IR transmitter, rack “ears”

OPTIONS

·         External remote IR receiver cable

PRODUCT DIMENSION

·         19" x 9.34 x 1U (43.6cm x 23.72cm 4.36cm) W, D, H

PRODUCT WEIGHT

·         2.0kg (4.3lbs) approx

SHIPPING DIMENSION

·         52.50cm x 33.00cm x 10.70cm (20.67" x 12.99" x 4.21" ) W, D, H

SHIPPING WEIGHT

·         2.8kg (6.1lbs) approx


Sản Phẩm Cùng Loại

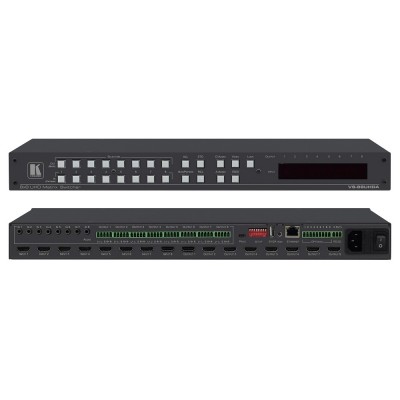

8x8 4K60 4:2:0 HDMI Matrix Switcher with Audio Kramer VS-88UHDA 8x8 4K60 4:2:0 HDMI Matrix Switcher with Audio Kramer VS-88UHDA
