HD610-DSYC-SE600 HD-SDI DSYC PTZ Camera

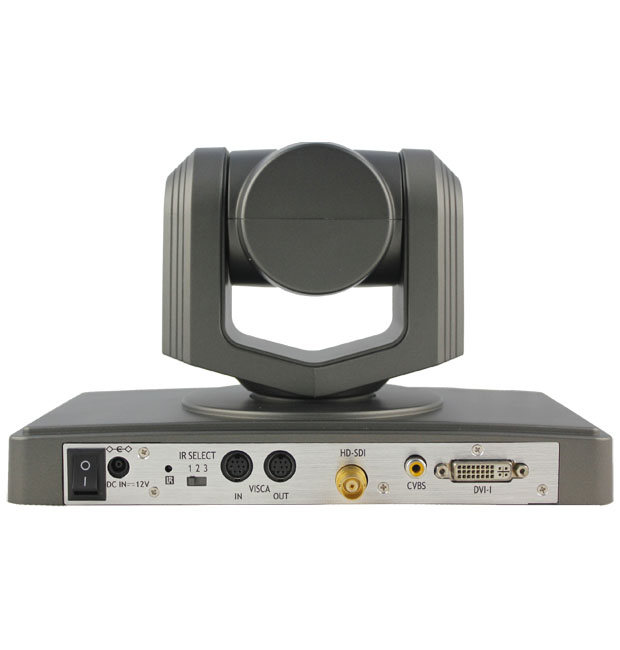

Low Cost High Performance 3.27 M HD Video camera achieved 1080p@30 high quality images. Equipped with SONY 3x optical, 12x digital zoom lens with wide HorizontalView field, ideally for small-sized videoconference rooms, auditoriums, and classroom. DVI-I connector is suited for DVI-D analog component which provided high-quality digital display, and HD-SDI used for long distance transmission application.


Features:
 cutting-edge High Definition PTZ camera
 Fast and smooth video handling
 Low cost design for marketing
 Power ON-OFF switch
 Work & Standby LED indicator
 Speed Match
 Auto/Manual focus/brightness/WB
 RS-232C/VISCA Protocol
 Lens/Dome OSD
 Boundary scanning
 Standby & wakeup status
 Swap video format
 DVI/HD-SDI Video output

Performance:
 1/2.8" Type CMOS
 3.27 Megapixel
 0.25 Lux at F1.2
 720P@30, 1080P@30
 3x Optical x 12 digital zoom
 f=3.0 to 9mm F1.2-2.2
 HOV 90° degree
 DSY Video output
 Pan : 0-355°
 Tilt: Up: 45°, Down: 45°
 64 preset positions
 4 cruise lines
 DC 12V, 2A

Dimension:
 L 250mm x W 140mm x H154mm
 N. Weight: 1.23 kgs (only camera)
 G. Weight: 2.4 kgs (one unit)
 N.W Carton of 2 units: 2.6 kgs
 G. W Carton of 2 units:5.5 kgs

Installation:
 Desktop
 Ceiling mount
 Standard Tripod accessory
12 Tháng
: Đang Có Hàng

 Model No.

HD 610-DSYC-SE600

Sensor

Image Sensor

1/2.8" Type CMOS

Effective Pix

3.27 Megapixel

Min. Illumination

0.25 Lux at F1.2

White balance

Auto/Manual/Indoor/Outdoor

Gain control

Auto

Backlight compensation

On/Off

Shutter speed

1/5~1/10,000S

S/N ratio

>50db

Lens

Focus

f=3.00(wide) to 9mm(tele) F1.2-2.2

Iris

Auto/Manual

Lens

3 Optical x 12 digital zoom

Horizontal view angle

1080p:90 degree,720p:70 degree

Video output

DVI,CVBS,HD-SDI

Signal system

720P@30,1080P@30

Control terminal

EIA/RS232C,EIA/RS485(Bidirectional)

Control Protocol

VISCA,PELCO-D

baud rate

9600/38400bps

patrol line

4 cruise sequence

preset position

64 preset positions

Speed Match

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image auto flp

Support Horizontal/Vertical image flip

Pan movement speed

1-200°/Second

Tilt movement speed

1-150°/Second

Pan movement range

Pan: 0-355°

Tilt movement range

Up: 45°, Down: 45°

Pan scanning automatically

Support Pan scanning automatically

Boundary scanning

0-359°  scanning (programmable)

Remote controller

IR Wireless Remote controller P/T/Z

Power supply

DC12V,2A

Work Temperature

0-50℃

Humidity

0-95%RH

LxWxH

250mm x 140mm x 145mm

Weight

2.8 kgs
