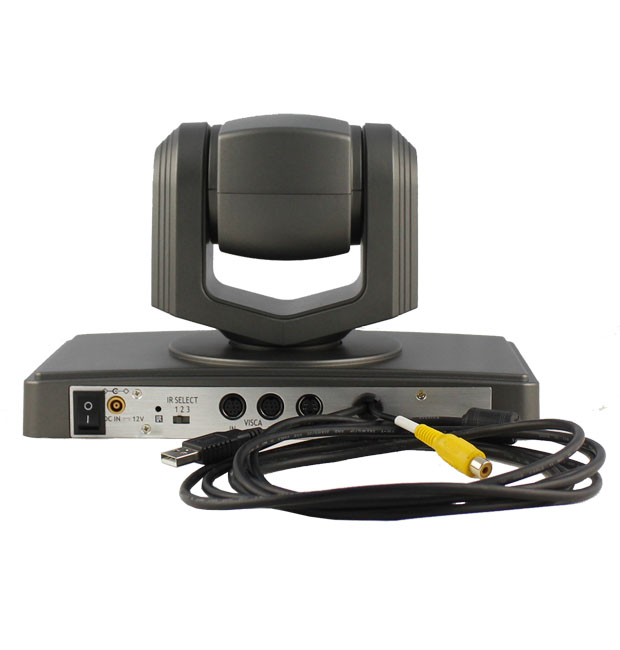

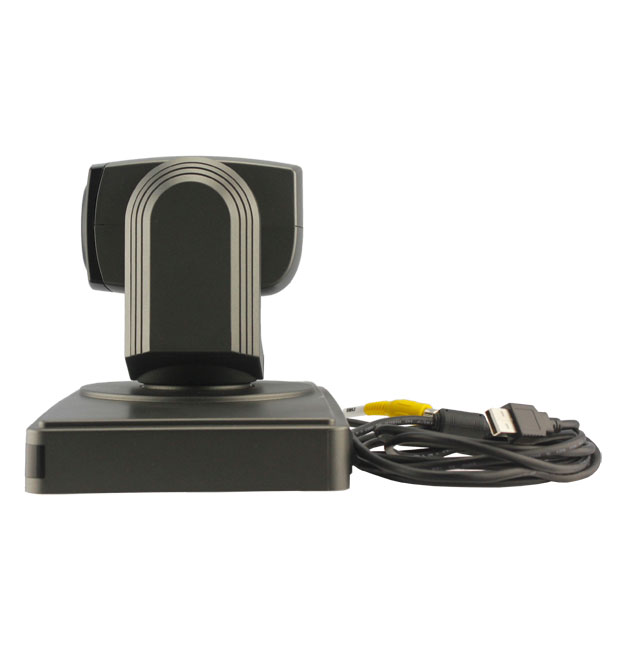

C368-18-USB USB Video PTZ Camera
C368-18-USB USB Video PTZ Camera
Liên Hệ

C368-18-USB USB Video PTZ Camera

C-368 equipped with FCB-EX48EP Which is deliver 18x optical zoom super Video performance with 1/4 Exview CCD, it supports VISCA/RS232/RS485 PTZ Control. There are S-Video, AV video output and USB connect for optional, built in 360 degree continuously Pan movement, 90 degree Tilt and features with REV for up-side down installation. Which is Ideally suited for Web conferencing system, remote education, lecturing and Training room application.


Features:
 S-Video/AV output
 Private Tooling design Color Video PTZ Camera
 Fast and smooth video handling
 Power ON-OFF switch
 Work & Standby LED indicator
 Speed Match
 Auto/Manual focus/brightness/WB
 RS-232C/VISCA Protocol
 Lens/Dome OSD
 Boundary scanning
 Standby & wakeup status

Performance:
 1/4-type Exview HAD CCD
 550TVL 18x Optical, 12x digital zoom, f=4.1 mm to 73.8 mm, F1.4 to F3.0
 12x (216x with optical zoom
 48 degree (wide) to 2.8 degree (tele)
 1.0 Lux/F1.4
 USB Interface
 Pan 360 degree continuously
 Tilt +90 degree, -45degree
 64 preset positions
 4 cruise lines
 DC 12V, 2A

Dimension:
 L 250mm x W 140mm x H154mm
 N. Weight: 2.6kgs
 G. Weight: 4.8kgs

Installation:
 Desktop
 Ceiling mount
 Standard Tripod accessory
12 Tháng
: Đang Có Hàng

Model Number

C368-18-USB

Image Sensor

Sensor

SONY FCB-EX48EP 1/4-type EXview HAD CCD

Signal System

PAL/NTSC

Illumination

1.0Lux/F1.4

White Balance

Auto/Manual

Gain Control

Auto

Back-light
compensation

On /Off

E-Shutter

1 - 1/100,000s

Horizontal
Resolution

550 TVL

S/N Ratio

>50db

Lens

Focus

f=4.1-73.8  F1.4 -3.0

Iris

Auto/Manual

Zoom

18x Optical X 12x Digital Zoom

Video Output

USB Output (Optional)

Control Decoder

Built-in decoder

Communication
Interface

EIA/RS422, EIA/RS232(Bidirectional)

PTZ Control Protocol

VISCA, PELCO-P, PELCO-D(optional)

Baud Rate

4800/9600bps

Patrol Lines

4 Patrol Lines

Preset Position

64 Preset Position

Power-off Protection

Saved scanning or patrol line settings Automatically Before power off

Speed Matching

Slow down camera Pan/Tilt movement speed while camera zooming in

OSD Menu

To change parameters of camera or camera module from OSD Menu

Image Auto Flip

Image Auto Flip

Pan Speed

1-280 degree per second

Tilt Speed

1-100 degree per second

Pan Rotation Angle

360 degree continuously

Tilt Rotation Angle

240 degree

Auto Pan Scan

Support auto pan scanning

Boundary Scan

0-359 degree(programmable)

Remoter Control

IR wireless remote controller P/T/Z

Power Supply

DC12V±10%, 1.2A

Working Temperature

0-50℃

Environment Humidity

0-95%RH

Size(LxWxH)

124X120X145mm

Weight

1300g
