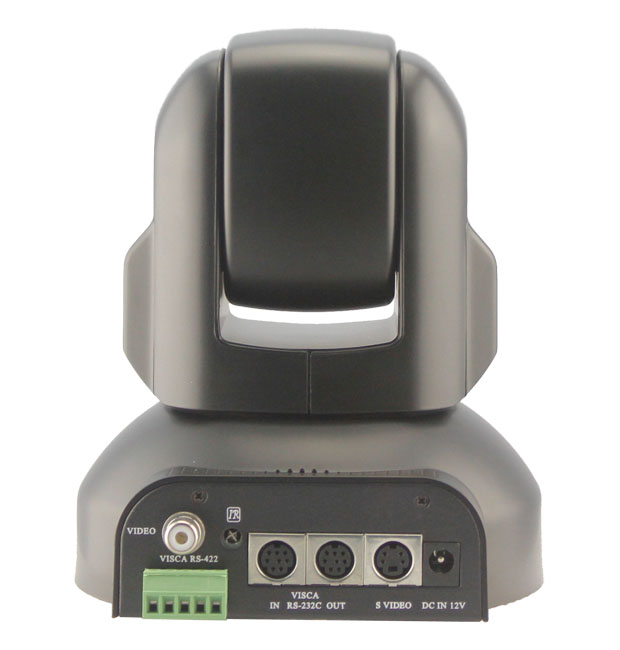

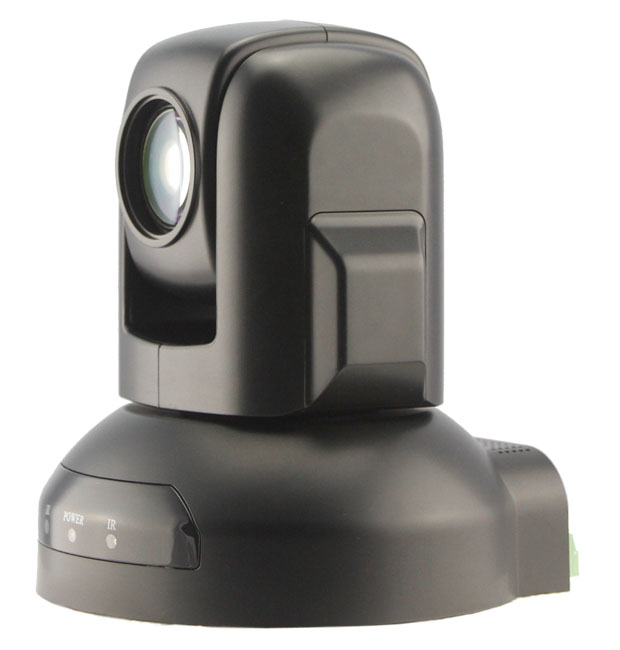

C360-CN6 AV PTZ Video Camera
C360-CN6 AV PTZ Video Camera
Liên Hệ

C360-CN6 AV PTZ Video Camera

Model

C360-CN6


Sensor

CCD

1/4” SONY CCD

Minimum Scene Illumination

0.01 Lux

White Balance

AUTO/Manual

Gain Control

Auto

Back-light Compensation

On/Off

Electronic shutter

1/50-1/10,000s

Horizontal resolution

650 TVL

S/N Ratio

> 50dB

Lens

Focus

AUTO

Iris

AUTO/Manual

Zoom

10x Optical Zoom

f=3.8-38 mm, F=1.8

Video Output

VIDEO: VBS: 1.0Vpp at 75ohm;

S-VIDEO(Only for SONY Camera block)

Communication

EIA/RS-422

EIA/RS-232(Bidirectional)

Baud Rate

2400/4800/9600 bps

Patrol tours

4

Pattern tours

4

Preset

64

Privacy Mask Zone

4

Power On Active

Auto pan scan or Patrol(Programmable)

Speed Matching Function

Support

OSD Menu

Support

Image Auto Flip

Support

Pan Speed

0-280 degrees/s

Tilt Speed

0-100 degrees/s

Pan rotation angle

360 degrees continuously

Tilt rotation angle

180 degrees

Auto Pan Scan

Support

Boundary Scan

0-359 degrees(programmable)

Remoter Control

IR Wireless remote control P/T/Z(10M)

Power

DC 12V+-10%; 1.2A

Temperature and humidity

0°-60°C, 0-95% RH(non-condensation)





12 Tháng
: Đang Có Hàng

Model

C360-CN6


Sensor

CCD

1/4” SONY CCD

Minimum Scene Illumination

0.01 Lux

White Balance

AUTO/Manual

Gain Control

Auto

Back-light Compensation

On/Off

Electronic shutter

1/50-1/10,000s

Horizontal resolution

650 TVL

S/N Ratio

> 50dB

Lens

Focus

AUTO

Iris

AUTO/Manual

Zoom

10x Optical Zoom

f=3.8-38 mm, F=1.8

Video Output

VIDEO: VBS: 1.0Vpp at 75ohm;

S-VIDEO(Only for SONY Camera block)

Communication

EIA/RS-422

EIA/RS-232(Bidirectional)

Baud Rate

2400/4800/9600 bps

Patrol tours

4

Pattern tours

4

Preset

64

Privacy Mask Zone

4

Power On Active

Auto pan scan or Patrol(Programmable)

Speed Matching Function

Support

OSD Menu

Support

Image Auto Flip

Support

Pan Speed

0-280 degrees/s

Tilt Speed

0-100 degrees/s

Pan rotation angle

360 degrees continuously

Tilt rotation angle

180 degrees

Auto Pan Scan

Support

Boundary Scan

0-359 degrees(programmable)

Remoter Control

IR Wireless remote control P/T/Z(10M)

Power

DC 12V+-10%; 1.2A

Temperature and humidity

0°-60°C, 0-95% RH(non-condensation)
