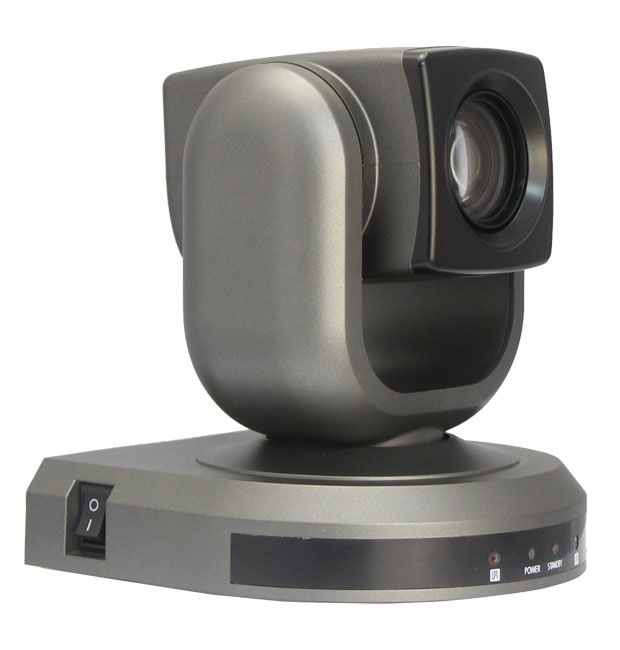

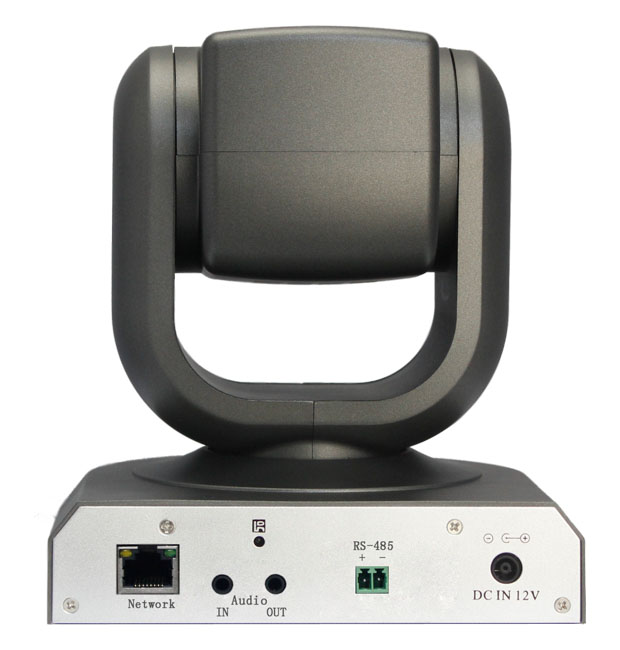

HD920N HD-IP Camera
HD920N HD-IP Camera
Liên Hệ

HD920N HD-IP Camera


Sensor

Sensor

1/2.8” Progressive CMOS

Effective Pixels

2 Mega Pixel

White Balance

Auto /Manual /Indoor /Outdoor

Minimum  Illumination

0.1Lux

Back-light compensation

On/Off

S/N Ratio

>50db

Shutter speed

1/1-1/10000s

S/N ratio

>50dB

Lens

Focus

f=4.7-94mm F1.6-F3.5

Hov

4°(T) ~55°(W)

Zoom

20x Optical Zoom

Zoom Speed

About 4S

Video Output

10M/100M LAN

Video Compression

H.264/ M-JEPG

Network protocol

PPPOE、TCP/IP、DHCP、UDP、RTP/RTCP、

RTSP、UPNP、SMTP、STP、DDNS、DNS

Video output formats

1080P30、1080P25

Audio Input

MIC

Audio Output

linear

Communication control interface

RS-485

Communication control protocol

PELCO-D

Baud Rate

9600bps

Preset

64

Patrol tours

4

Speed Matching Function

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image Auto Flip

Support Horizontal/Vertical image flip

Pan Speed

0-120 degrees/s

Tilt Speed

0-100 degrees/s

Pan Rotation Angle

360 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359 degree(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V±10%,1.2A

Operation Temperature

0℃~50℃

Length X width X high

145mm×148mm×160mm

Weight

915g



12 Tháng
: Đang Có Hàng


Sensor

Sensor

1/2.8” Progressive CMOS

Effective Pixels

2 Mega Pixel

White Balance

Auto /Manual /Indoor /Outdoor

Minimum  Illumination

0.1Lux

Back-light compensation

On/Off

S/N Ratio

>50db

Shutter speed

1/1-1/10000s

S/N ratio

>50dB

Lens

Focus

f=4.7-94mm F1.6-F3.5

Hov

4°(T) ~55°(W)

Zoom

20x Optical Zoom

Zoom Speed

About 4S

Video Output

10M/100M LAN

Video Compression

H.264/ M-JEPG

Network protocol

PPPOE、TCP/IP、DHCP、UDP、RTP/RTCP、

RTSP、UPNP、SMTP、STP、DDNS、DNS

Video output formats

1080P30、1080P25

Audio Input

MIC

Audio Output

linear

Communication control interface

RS-485

Communication control protocol

PELCO-D

Baud Rate

9600bps

Preset

64

Patrol tours

4

Speed Matching Function

Pan/Tilt movement speed depends on camera module zoom in/out

OSD Menu

Access to OSD Menu and adjust camera module parameters

Image Auto Flip

Support Horizontal/Vertical image flip

Pan Speed

0-120 degrees/s

Tilt Speed

0-100 degrees/s

Pan Rotation Angle

360 degrees

Tilt Rotation Angle

+ 90 degrees, - 45 degree

Auto Pan Scan

Support

Boundary Scan

0-359 degree(Programmable)

Remoter Control

IR Wireless remote control P/T/Z

Power

DC12V±10%,1.2A

Operation Temperature

0℃~50℃

Length X width X high

145mm×148mm×160mm

Weight

915g
